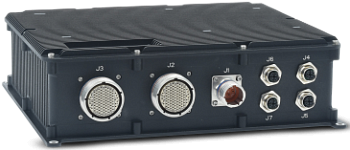

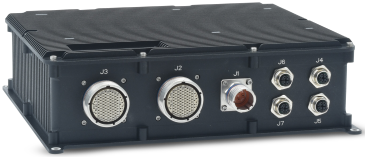

SabreNet-24000

• 24x 1G ports
• 4x 10G ports
• Dust/moisture: IP67
• Operating temperature: -40°C to +85°C

SabreNet-24000 is a rugged ethernet switch intended for vehicle and other applications requiring the ability to withstand harsh environmental conditions. The design is based on Diamond's EPS-24G4X Ethernet switch with 24x 1G ports and 4x 10G SFP+ sockets. The switch runs Istax Layer 3 routing/switching embedded software featuring an impressive array of features suitable for most industrial and military applications.

The standard configuration includes the 4x 10G ports implemented with copper wiring via M12 X-coding connectors. Customer choice of fiber links can be accommodated as well. In the fiber configuration, the SFP+ Copper/RJ-45 modules are replaced with customer's choice of fiber modules with LC connections, and the I/O connectors consist of D38999 size C shells with 4 fiber termini (2 ports) per shell.

Input power range is 7-40VDC. The switch includes a power filter module providing compliance with MIL‑STD‑461‑D standards.

Embedded Software

The Istax embedded software in SabreNet-24000 provides a powerful array of features to support most embedded switch application requirements. All features are configured and managed via a GUI web interface accessible over any port, as well as with a command language accessed via a built-in RS-232 port. Customer branding is available to put your logo / color scheme / part numbers on the GUI and serial interface.

The table below shows some of the more popular features included in the software:

• 8K MAC addresses and 4K VLANs (IEEE 802.1Q)
• 8K IPv4 and IPv6 multicast group support
• Jumbo frame support at all speeds
• Flexible link aggregation support based on Layer-2 through Layer-4 information (IEEE 802.3ad)
• Multicast and broadcast storm control, as well as flooding control
• Rapid Spanning Tree protocol (RSTP) and MSTP
• Multiple protocol support: IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, and IEEE 802.1X
• 8 priorities and 8 QoS queues per port with scheduling
• Hardware- and software-based IPv6 L3 static routing
• RFC 2328 OSPFv2 dynamic routing
• IEEE 1588 precision time protocol (PTP)
• RADIUS accounting
• Port and Queue policers
