Jetbox-Osbourne

• Choice of AGX Orin 32GB / 64GB module
• I/O-rich
• Optional support for up to 8 GMSL cameras
• Operating temperature: -25°C to +80°C

Jetbox-Osbourne provides a compact and economical solution for commercial / industrial grade applications based on the NVIDIA Jetson AGX Orin high-performance GPU module.

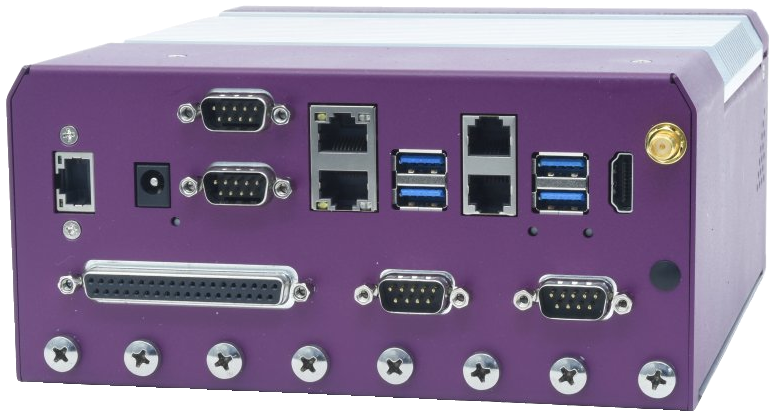

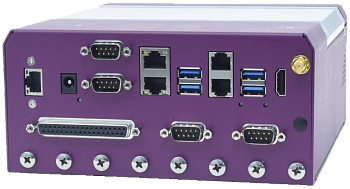

JetBox-Osbourne is based on Diamond’s Osbourne carrier board together with its commercial I/O breakout board. This combination offers a multitude of I/O including:

• 1×10Gbps and 1×1Gbps Ethernet port using RJ-45 jacks
• 3x USB 3.2 ports with USB 2.0 fallback on Type A connectors
• 1x additional fixed USB 2.0 port on Type A connector
• 2x RS-232/422/485 serial ports using DB9 male connectors
• 2x CAN ports using RJ-12 connectors
• 8x GPIO ports (muxed with one serial port on a DB9 connector)
• 1x HDMI display on a type A (standard size) connector

I/O Expansion

The system is expandable with a PCIe minicard and an M.2 E-key module. A series of Dsub and SMA cutouts are available on the front panel for access to the add-on modules’ I/O. Installation is easy by removing the bottom cover, which provides ready access to all expansion sockets and the front panel.
